Edit Schedule Item Window

Edit Schedule Item Window

Inclusive of this time
1

Scheduled clock

1. Scheduled clock
The clock that is being scheduled. Click the underlined name of the clock to select a different clock and launch the Select Clock Window
2

Start time

2. Start time
The start time of the scheduled clock. For recurring (repeated) scheduled clocks this indicates the first occurrence.
3

Finish time

3. Finish time
The finish time of the scheduled clock. Clocks are restricted to a duration of exactly one hour.
4

Repeat checkbox

4. Repeat checkbox
Use the repeat checkbox to repeat this scheduled clock multiple times in the future.
5

Repeat period

5. Repeat period
Use the repeat period dropdown to select how often the scheduled clock repeats over time.
6

Repeat every...

6. Repeat every...
Use the repeat every... dropdown to select how often the scheduled clock repeats over time.
7

Repeat on...

7. Repeat on...

When Daily is selected as the repeat period, use the repeat on... options to select which hours the scheduled clock will repeat on. Click the All option to select all hours.

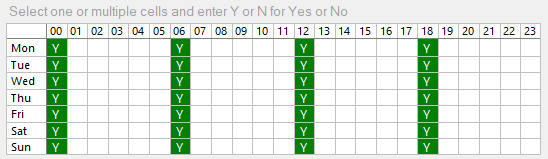

When Weekly is selected as the repeat period, use the repeat on... grid to select which hours and days of the week the scheduled clock will repeat on. Select one or multiple cells and enter Y or N for Yes or No. "No" cells are shown as blank.

8

Repeat until...

8. Repeat until...
Select Forever to repeat this scheduled clock indefinitely. Select This Time to repeat this scheduled clock until the selected time (inclusive).
9

OK button

9. OK button
Click the OK button to confirm changes.
10

Cancel button

10. Cancel button
Click the Cancel button to discard changes.
